Waste Plastic Recycling Machine for PE/PP/PVC/ABS/PET Pelletizing Machinery
Reliable and Fully Automatic Granulator Extruder Machine for Packing Belts/Bottle Flakes
PP PE HDPE LDPE Plastic Pelletizing Machine Waste Plastic Granulator Recycling Machine

1.General description of Waste Plastic PP PE HDPE LDPE Film Bag Recycle Pelletizing Machinery

PE PP Plastic film granulator / Waste film pelletizing machine
1. Capacity: 100kg/h-800kg/h
2. Type: Water-ring pelletizing,Water cooling strand pelletizing line,Hot cutting granulator and Two stage pelletizer

The usage and characteristic
*This water-cooling single screw plastic pellet making machine is one stage plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted.
*And also has very developed design, makes sure this machine has a long working life and economical efficiency in using.

Parameters of Waste Plastic PP PE HDPE LDPE Film Bag Recycle Pelletizing Machinery

2.The type of pelletizing line for your optional

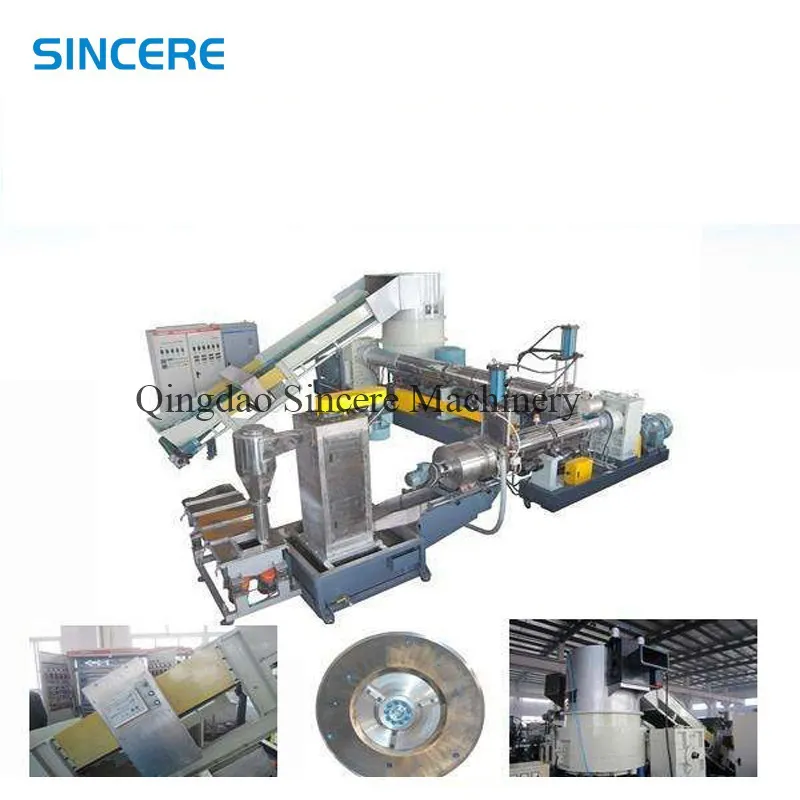

2.1 Water ring pelletizer
It has advanced technology.It has the best quality and the lowest price.
This machine is equipped with gearbox specially-designed for hard tooth face ; 38CrMoALA nitrided screw and barrel; non-stop screen-changer, cooling water tank, blower fan, hob-style granule-cutter. It is suitable for the recycling and pelletizing of PP, PE, PS, PET, ABS, PC, PVC, ect.
Machine consists of:
Belt conveyor → Compression barrel → Efficient extruder → Non-stop hydraulic screen filter changer → Water ring cutting → Centrifugal dehydrator machine →Vibration machine → Air conveying system → Storage silo
Main techinical parameters

*The capacity can be 200-800kg/h according requirement
*This machine is used to pelletizing recycled material
*Screen exchanger will make sure the extruded granule is purity;
*The raw material can be PE/PP/PS/ABS scrap

Machine consists of:
Two sets of single screw extruder→Die and Mould→Cooling Sink→Pelletizer→Fetch water device→Hydraulic pressure station→Pressure sensor→Automatic control system→Spiral feeding machine.

3. Our service
*We can provide customers with perfect installation and use services.
*We can provide customers with satisfactory products according to their needs.
*When problems arise during the use of products, we can provide appropriate solutions.
*The warranty period is one year, except man-damage.
*Welcome to visit our factory and looking forward to win-win cooperation.

Qingdao Sincere Machinery Co., Ltd. is located in the beautiful coastal city Qingdao of Shandong Province, Qingdao airport and Qingdao/Jiaozhou railway station provide convenient transportation.

Our company is a plastic machinery research and development, design and manufacturing, production and operation and technical services as one of the high-tech enterprises. The area of construction is 12000M2, we have one office building and three workshops.

We have certification CE, SGS, ISO, EAC and so on.

Our main products are: Plastic extruders, PE/PP spiral winding pipe extrusion lines, profiled structural wall HDPE pipe extrusion line, ribbed/steel reinforced spiral DWC corrugated pipe machine, water tank machine, plastic welding threading engraving machine, HDPE/PPR/PVC/pert composite water pipe extrusion line, HDPE mbbr biomedia extruder machine, plastic HDPE/PP/ABS/pet/PVC sheet/board/panel extruding equipment, plastic PVC/PE/ABS profile/panel equipment, plastic recycling pelletizer granulation line, shredder/crushers and other auxiliary equipments for plastics.

Varieties of new products sold domestic and exported to Russia, Southeast Asia, the Middle East, Africa and many other countries and regions.

HDPE Spiral winding pipe extrusion line.

HDPE Weholite/Culvert pipe extruding machine.

KWH pipe machine. Krah pipe extrusion line.

HDPE sewage pipe extruder machine.

Double wall corrugated HDPE pipe extrusion lines.

Water tank extrusion production line.

DN200-DN4000mm HDPE pipe manufacturing machinery.

Triple layers HDPE water supply pipe machine.

HDPE/PP/PPR/PERT/PVC Water supply and drainage pipe extrusion line.

MBBR Biomedia production extruder machine.

Plasitc scrap granulator pelletizing line

PVC/ABS/PE/PP profile/panel making machine.

HDPE/PP/ABS/PMMAThick sheet/board production line.

PE/PP/PET/PS/PC/PMMA/PLA sheet/panel produciton machine.

Welcome to visit our factory and looking forward to win-win cooperation.
