    Polyethylene Plastic WaterPipe Electric Conduit Pipe Manufacturing Equipment

    Ask Lasest Price
    Brand Name : Sincere
    Model Number : SMPE-110,SMPE-160,SMPE-315
    Certification : CE
    • Product Details
    • Company Profile

    Polyethylene Plastic WaterPipe Electric Conduit Pipe Manufacturing Equipment

    Product Description:

    PP PE Water Pipe Production Making Machine

    The PP PE Water Pipe Production Making Machine is primarily designed for manufacturing PP and PE pipes with different diameters and thickness. These pipes are commonly utilized in various applications including water supply systems, industrial water conveying systems, compressed air transportation, and more.


    Features:

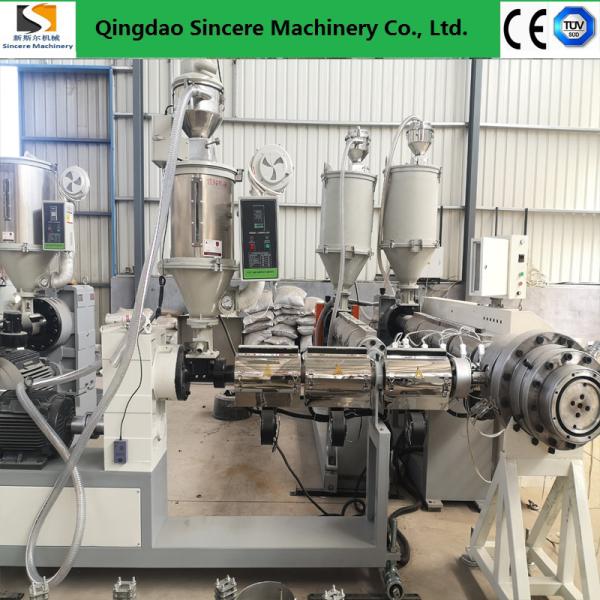

    Raw materials and additives are combined before being processed through a series of machines. The process begins with mixing the raw materials and additives together. The mixture then undergoes further processing through a vacuum feeding machine and hopper dryer to ensure proper consistency and remove any moisture.

    Next, the processed mixture is fed into a single screw extruder where it is heated and shaped. A color code extruder may also be used to add coloring to the mixture at this stage. The formed material is then passed through a mould and calibrator, which helps in shaping and sizing the final product.

    After the shaping process, the material moves on to a vacuum forming machine for further shaping and cooling. It is then transferred to a cooling tank to set the shape before being processed through a haul off machine for pulling and stretching. A cutting machine is used to cut the material to the desired length before it is placed on a discharging rack for storage or further processing.


    Technical Parameters:

    Model/Item
    Pipe range
    Extruder
    Max.output
    Motor power
    Total power

    PE-63
    16-63mm
    SJ65/33 SJ25/25
    120-180kg/h
    45kw
    110kw

    PE-110
    16-110mm
    SJ65/33 SJ25/25
    150-200kg/h
    55kw
    130kw

    PE-160
    50-160mm
    SJ75/33 SJ25/25
    150-220kg/h
    75kw
    150kw

    PE-250
    75-250mm
    SJ75/33 SJ25/25
    280-350kg/h
    90kw
    280kw

    PE-315
    110-315mm
    SJ90/33 SJ25/25
    250-350kg/h
    132kw
    380kw

    PE-450
    160-450mm
    SJ90/33 SJ25/25
    350-450kg/h
    160kw
    400kw

    PE-630
    315-630mm
    SJ120/33 SJ25/25
    550-850kg/h
    200kw
    550kw


    Applications:

    Sincere Plastic Pipe Extrusion Line, also known as the Plastic Pipe Making Machine, is a versatile and high-quality piece of Plastic Tube Manufacturing Equipment designed for various applications and scenarios. With models available such as SMPE-110, SMPE-160, and SMPE-315, this product carries the brand name Sincere and is proudly made in China.

    Thanks to its CE certification, customers can trust the reliability and safety of this PE Pipe Extrusion Line. The extrusion process used in this equipment ensures precision and efficiency in producing plastic pipes. Utilizing co-extrusion with color trip capability, the Sincere Plastic Pipe Extrusion Line allows for the creation of pipes with multiple layers and colors.

    With motor power ranging from 55 to 355kw, this equipment can handle various production needs with ease. Its fully automatic grade means that it is user-friendly and requires minimal manual intervention, making it suitable for a wide range of manufacturing environments.

    The Sincere Plastic Pipe Extrusion Line is ideal for a multitude of occasions and scenarios. It can be used in construction projects for laying down water pipes, sewage pipes, and drainage systems. In the agricultural sector, this equipment can be employed for irrigation systems, water supply networks, and more.

    Furthermore, the versatility of this Plastic Pipe Making Machine makes it suitable for industrial applications such as conveying systems, protective casing for electrical cables, and even in the production of furniture and automotive components.

    Whether you are looking to produce large diameter pipes or intricate small-sized tubes, the Sincere Plastic Pipe Extrusion Line is a reliable and efficient choice for meeting your manufacturing needs. Trust in its quality, performance, and the assurance of its origin from China.


    Support and Services:

    Our Product Technical Support and Services for the Plastic Pipe Extrusion Line include:

    - Initial installation and setup guidance

    - Training sessions for operating and maintaining the extrusion line

    - Troubleshooting assistance for any technical issues

    - Regular maintenance recommendations to ensure optimal performance

    - Access to our team of experts for any product-related inquiries


    Packing and Shipping:

    Product Packaging:

    The Plastic Pipe Extrusion Line is carefully packaged to ensure safe delivery. Each component is securely wrapped and cushioned to prevent any damage during transportation.

    Shipping:

    We offer worldwide shipping for the Plastic Pipe Extrusion Line. Once your order is confirmed, our dedicated team will arrange for the prompt delivery of the product to your specified location. We work with reliable shipping partners to ensure timely and efficient delivery.


    FAQ:

    Q: What is the brand name of the Plastic Pipe Extrusion Line?

    A: The brand name is Sincere.

    Q: What are the available model numbers for the Plastic Pipe Extrusion Line?

    A: The available model numbers are SMPE-110, SMPE-160, and SMPE-315.

    Q: Where is the Plastic Pipe Extrusion Line manufactured?

    A: The Plastic Pipe Extrusion Line is manufactured in China.

    Q: Does the Plastic Pipe Extrusion Line have any certifications?

    A: Yes, it is certified with CE.

    Q: Can I get a customized Plastic Pipe Extrusion Line with specific requirements?

    A: For customization inquiries, please contact our sales team for further assistance.
