Product Description:
Pre-insulated pipe production line with HDPE Black/Yellow Shell and
polyurethane foam.
HDPE Casing Pipe Making Machine.
polyurethane foaming Machine.
One-step or two-step Pre-insulated pipe production line.
Type 1: Two Step Pre-insulated Pipe Making Machine
Brand : Qingdao Sincere Machinery
Two Step Pre-insulated Pipe Making Machine
Isolate heat layer and anti-corrosion layer are wrapped on steel
pipe at the same time, continuous production, high efficiency and
low cost.
Machine feature: low cost, without vacuum calibration tank, inner pressure produce
method;
In-line ball blast de-rust, in-line painting and antirust
treatment.
Diameter range: Φ48-Φ1800mm.
This set is mainly used to produce the big size PE heat
preservation pipe. Its product is mainly used in the outer layer of
heating pipe line, the middle layer is polyurethane foaming layer
and the inner layer is steel tube.
It can also produce water supply pipe and drain pipe by adding the
vacuum calibration tank and cooling tank.
This set is composed of extruder, die and mould, cooling water
sink, haul off machine, clipping pipe machine, bracket, support
frame and electric controlling pats, etc.
Technology flow:HDPE two step method is produce the HDPE casing in first step, then
thread pipe inside the casing and foaming in the middle of it.
Main technical data:
| Extruder | Haul off machine | Main mould | Pipe dia. |
| SJ90-1/25 | SJGF-400-6 claws | Φ110, Φ250 | Φ75-Φ400 |
| SJ120-1/25 | SJGF-800-8 claws | Φ420 | Φ400-Φ760 |
| SJ150-1/25 | SJGF-1500-10 claws | Φ760 | Φ600-Φ1800
|
Features:
Type 2: One Step Pre-insulated Pipe Making Machine
Brand : Qingdao Sincere Machinery
One Step Pre-insulated Pipe Making Machine
This one step technology is to cover the steel tube surface with
insulation layer& anti-corrosion layer at the same time, thus forms
insulating& anti-corrosion layer of the pepeline, which is pioneer
way in China, Compred wich other methods, it features continuous
operation, high efficiency, low cost, energy saving, labor saving,
environment pollution-free and so on. Progress second prize,
several technology update to the advanced international lever.
After updating technology, it has reached internation advanced
lever.
The outer casing can be yellow color and black color.
Technical features of pre-insulated pipe making machine:
1. can be operated continuously, high production efficiency, low
cost, energy saving
2. automatic deviation adjusting machine, high exactness, steady
working, effective correction
3. the whole line all conveyed by rubber wheel, avoid damage to
anti-corrosion layer of steel tube
4. casing layer stick with foam layer, foam layer stick with
anti-corrosion layer, anti-corrosion layer firmly stick with steel
tube.
5,Foming machine online foaming;
6,Pushing machine push the steel into the clad die head&Mould
easily;
Specification table of pre insulated pipe: The thickness of foaming layer and casing can be desinged
according to customer's requirement
| Steel Tube Size(mm) | Casing Wall Thickness(mm) | Insulating Layer(mm) |
| 45 | 2.0 | 29 |
| 57 | 2.0 | 29 |
| 76 | 2.2 | 30 |
| 89 | 2.2 | 30 |
| 108 | 2.4 | 30 |
| 133 | 2.4 | 30 |
| 159 | 2.5 | 40 |
| 219 | 2.5 | 40 |
| 273 | 3.0 | 40 |
| 325 | 3.0 | 40 |
| 377 | 3.5 | 40 |
| 426 | 4 | 50 |
Constitute of one step pre-insulated pipe making machine:
1,Pushing Machine
2,Single Screw Extruder
3,Die Head&Mould for threading the steel pipe
4,Low Pressure Foaming Machine
5,Water Cooling Tank
6,Auto Deviation Correction Machine
7,Transmission Line for conveying steel pipe and conveying finished
foam pipe
Technical Parameters:
| Control System | PLC Touch Screen |
| Cooling Method | Water Cooling |
| Pipe Length | 6m |
| Application | Steel Pipe Insulation |
| Pipe Structure | PE+PU+Steel Pipe |
| Insulation Thickness | 20-50mm |
| Production Speed | 10-15m/min |
| Material | Polyurethane |
| Warranty | 1 Year |
| Pipe Diameter | 20-100mm |
This is a technical table for an Insulation Pipe Manufacturing Machine , also known as an Insulation Pipe Production Line or Insulation Pipe Extrusion Line .
Applications:
The Insulation Pipe Extrusion Line is specifically designed for
steel pipe insulation applications. With the capability to create
insulation thicknesses ranging from 20-50mm, this product is
versatile and can handle a variety of project requirements. The
pipe structure consists of PE+PU+Steel Pipe, making it strong and
durable for long-term use. The pipe diameter ranges from 20-100mm,
ensuring compatibility with a variety of pipe sizes.
This product is ideal for a variety of occasions and scenarios. It
can be used in commercial and industrial settings, as well as for
personal projects. It is perfect for insulating pipes in buildings,
including hospitals, schools, and offices. It can also be used for
insulation in manufacturing facilities, such as factories and
warehouses. Additionally, it is a great option for those who need
to insulate pipes in their home or garage.
The Insulation Pipe Extrusion Line is easy to use and provides
efficient results. It is a great investment for those who need to
insulate pipes regularly. With its durable construction and
high-quality materials, it is built to last and withstand heavy
use. Trust Sincere and their Insulation Pipe Extrusion Line for all
your insulation needs.

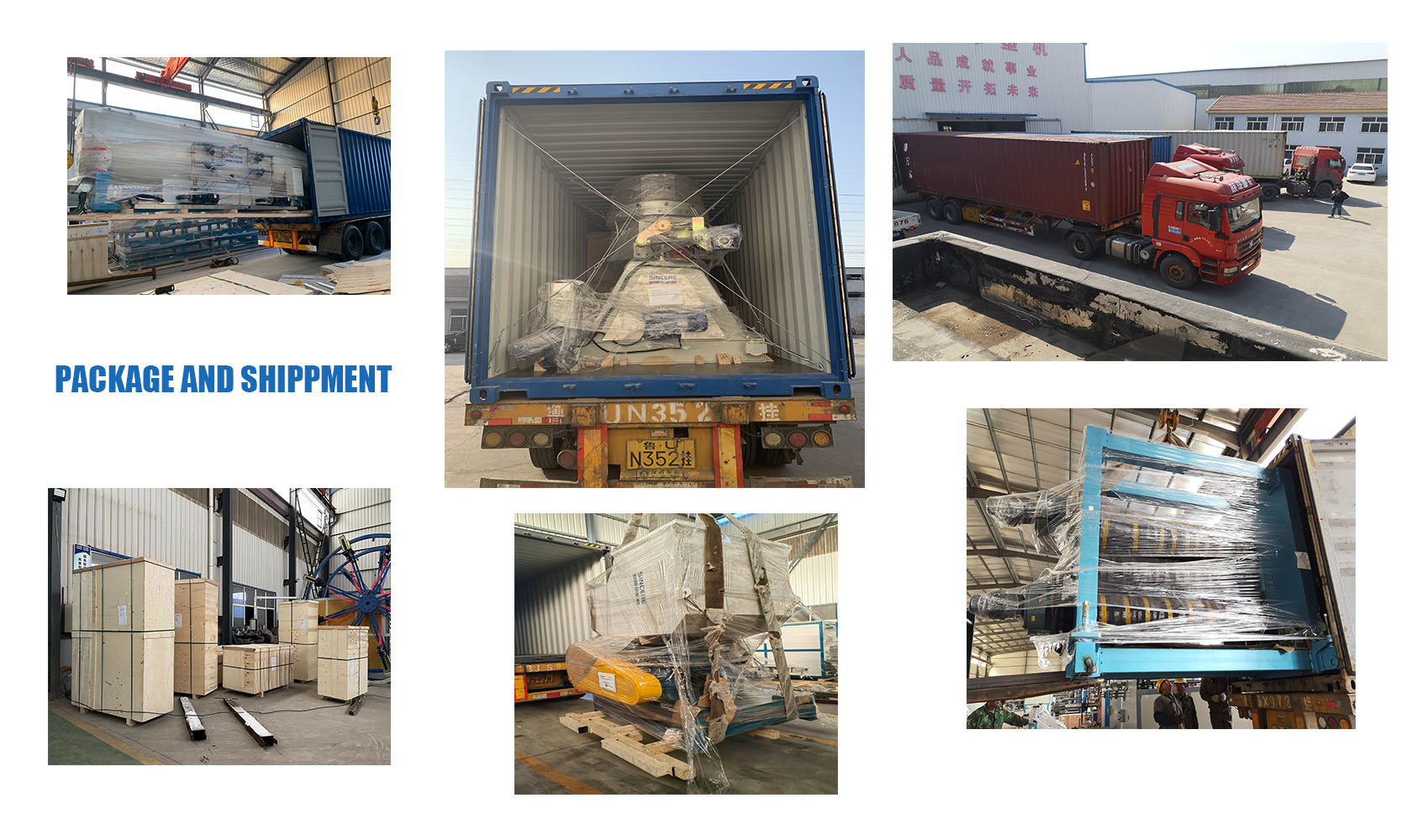

Packing and Shipping:
Product Packaging:
Insulation Pipe Machine
User manual
Spare parts
Shipping:
FAQ:
Q: What is the brand name of this insulation pipe machine?
A: The brand name of this insulation pipe machine is Sincere.
Q: What are the model numbers available for this insulation pipe
machine?
A: The available model numbers for this insulation pipe machine are
SMPI005 and SMPI550.
Q: Where is this insulation pipe machine manufactured?
A: This insulation pipe machine is manufactured in China.
Q: What are the specifications of this insulation pipe machine?
A: The specifications of this insulation pipe machine vary
depending on the model number. Please refer to the product manual
for specific details.
Q: Does this insulation pipe machine come with a warranty?
A: Warranty-related content is excluded from this Q&A. Please
refer to the warranty information provided with the product.
