Competitive Price Plastic Double Wall Corrugated Tube Drainage Pipe
Production Line
Product Description:
Our company offers a High-Speed PE PP double wall corrugated pipe
making machine/extrusion line that can produce pipes ranging from
90mm to 1200mm in diameter. The machine features a new type of PE
PP double wall corrugated pipe making that is more advanced and
efficient.
The HDPE double-walled corrugated pipe is widely used as a drain
pipe, and our company has absorbed foreign advanced technology to
develop a production line that features a number of patented

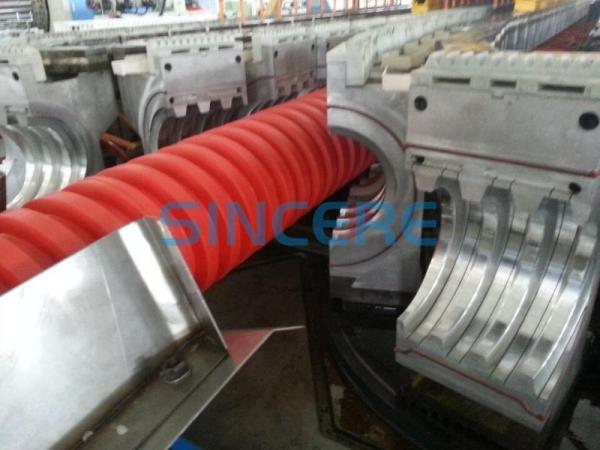

technologies. Our new high-speed PE | PP double-wall corrugated
pipe production line uses a high-performance single-screw extruder
and a forming machine that features a horizontal structure, shuttle
drive, sealed water-cooled, online flaring, high degree of
automation, stable operation, and large output.
Furthermore, our PE / PP double wall corrugated pipe production
line can create single-walled, double-wall corrugated pipe (with
Pipe Belling), three-wall corrugated pipe, different shapes, and
special requirements of special-shaped bellows with diameters
ranging from 40mm to 1200mm.
Features:
Technical Parameters:
Model Specifications
The following table lists the technical specifications for our
various models:
| Model number | Screw diameter (mm) | Rotational speed of screw (rpm) | Pellets size (mm) | Main motor power (kw) | Heating power (kw) | Production capacity (kg/h) | Net weight (Kg) | Overall size (mm) |
|---|
| SJSZ45 | 45/90 | 1-45 | 3-4 | 15 | 9.6 | 70-80 | 2800 | 3300*1200*2000 |
| SJSZ51 | 51/105 | 1-45.5 | 3-4 | 22 | 11.5 | 80-120 | 3000 | 3360*1290*2100 |
| SJSZ55 | 55/110 | 1-40 | 3-4 | 22 | 18 | 150-180 | 3500 | 3620*1350*2200 |
| SJSZ65 | 65/132 | 1-38 | 3-4 | 37 | 24 | 250-300 | 4000 | 4235*1520*2450 |
| SJSZ80 | 80/156 | 1-36.9 | 3-4 | 55 | 36 | 320-450 | 5000 | 4750*1550*2460 |
| SJSZ92 | 92/188 | 1-34.7 | 3-4 | 110 | 88 | 650-800 | 5500 | 6000*1600*2500 |
Applications:

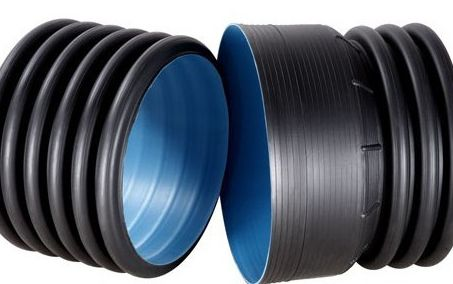

Double wall corrugated pipe application:
In modern times, double wall corrugated pipes have become popular
and widely used in various engineering projects. One of their main
applications is in road surface engineering. This type of pipe is
specifically designed to be used in railway tracks, city roads, and
highways drainpipes. They are known for their durability and
toughness, which make them ideal for use in areas that are prone to
heavy traffic and extreme weather conditions.
Another important application of double-wall corrugated pipes is in
mining engineering. The pipes are used for the transport of ores,
river silt, coal ash, mine air supply, ventilation, and drainage.
The double-wall bellows design provides an additional layer of
protection to ensure the safe and efficient transport of materials,
even in harsh mining environments.
Additionally, double wall corrugated pipes are used in
communication engineering. These pipes are ideal for protecting
communication cables, including optical cables and power cables.
They are widely used for underground pipeline protection and are
available in various sizes to accommodate different cable
diameters. Overall, double wall corrugated pipes are highly
versatile and suitable for a wide range of engineering
applications.
Packing and Shipping:
Product Packaging:
The corrugated pipe extrusion line is carefully packaged in a
sturdy wooden crate to ensure safe transportation.
All components are securely fastened and protected with foam
padding.
The crate is labeled with product information and handling
instructions for easy identification and handling.
Shipping:
We offer worldwide shipping for the corrugated pipe extrusion line.
After your order is confirmed, we will arrange for the product to
be shipped to your desired location.
Shipping times and costs may vary depending on your location and
preferred shipping method.
Please contact us for more information on shipping options and
costs.
FAQ:
Frequently Asked Questions:
Q: What is the brand name of this product?
A: The brand name of this product is Sincere.
Q: What are the available model numbers for this product?
A: The available model numbers for this product are SMDWC110,
SMDWC300, and SMDWC600.
Q: Where is this product made?
A: This product is made in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
Q: How long is the delivery time for this product?
A: The delivery time for this product is 50 working days.
Q: What are the payment terms for this product?
A: The payment terms for this product are 30% in advance and 70%
after testing machine, before shipment.
Q: What is the supply ability for this product?
A: The supply ability for this product is 20 sets per month.
