PVC ASA composite glazed House roofing tile extrusion line.
PVC Resin Roofing tiles extruding machine.
PVC bamboo tile production line.
720mm/880mm/960mm/1040mm/1050mm
1. PVC glazed roof tile extrusion production line advantages:
high production efficiency, the structure is reasonable and
compact, easy operation and maintenance.PVC glazed roof tile is widely used in pavilions, hotels,
exhibition halls, resorts, families and other buildings. PVC glazed
roof tile has a series of advantages: Weather resistance, Corrosion
resistant performance, excellent load capacity, Shock resistant and
low temperature resistant, Self clean and so on.
2. PVC glazed roof tile extrusion line configuration
| No | Name | Number |
| 1 | Screw loader for SJZ80/156 | 1set |
| 2 | SJZ80/156 Conical twin screw extruder | 1set |
| 3 | drying hopper for SJ50/30 | 1set |
| 4 | Vacuum loader for SJ50/30 | 1set |
| 5 | SJ50/30 single screw extruder | 1set |

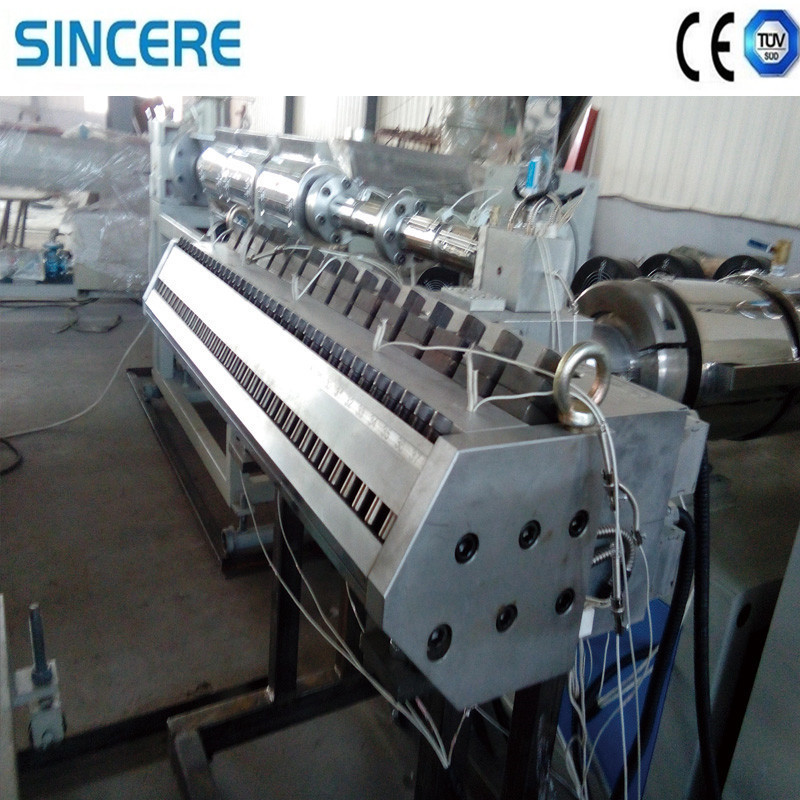

| 6 | Extrusion Mould and Distributor (T-die) | 1set |
| 7 | DistributorForming machine | 1set |
| 8 | Embossing roller Trimming device | 1set |
| 9 | Embossing roller | 1set |
| 10 | Cutter | 1set |
| 11 | Stacker | 1set |
Auxiliary machine:
| No | Name | Number |
| 1 |
Accessories machines for Top Ridge
(Europe Style Tile), Side ridge, three way ridge, End Ridge,
fittings. | 1.1)Flat sheet haul-off unit, 1 set
1.2)Oven,1set
1.3)Ridge tile forming unit,1set
1.4)ridge tile mold, 4sets |
| 2 | Mixer 200|500 or 300|600 | 1set |
| 3 | Screw loader | 1set |
| 4 | Crusher | 1set |
| 5 | Pulverizer (milling machine) | 1set |
3. Main Technical Specifications:
| Extruder | SJZS-80/156 | SJ50/30 |
| Productivity | 350kg/h | 50kg/h |
| Haul-off power | 20KN |
| Haul-off speed | 0.3~5m/min |
Product specifications
(Can be produced according to customer requirements) | Width title:720/880/960/1040mm
Pitch:160mm
wave length:220mm
wave height:30mm
Thickness:1~3mm
Materials:PVC,ASA or PMMA with different colors and some additives. |
