PP PE PC multi-hollow sheet production line.
PP PE PC multi-hollow sheet production line PC hollow grid sheet
Extrusion Machinery Polycarbonate sunlight panel extrusion line.
1. This unit for pp,pe,pc plastic hollow sheet extrusion machine line
is the special equipment for extruding PC hollow grid board
directly.

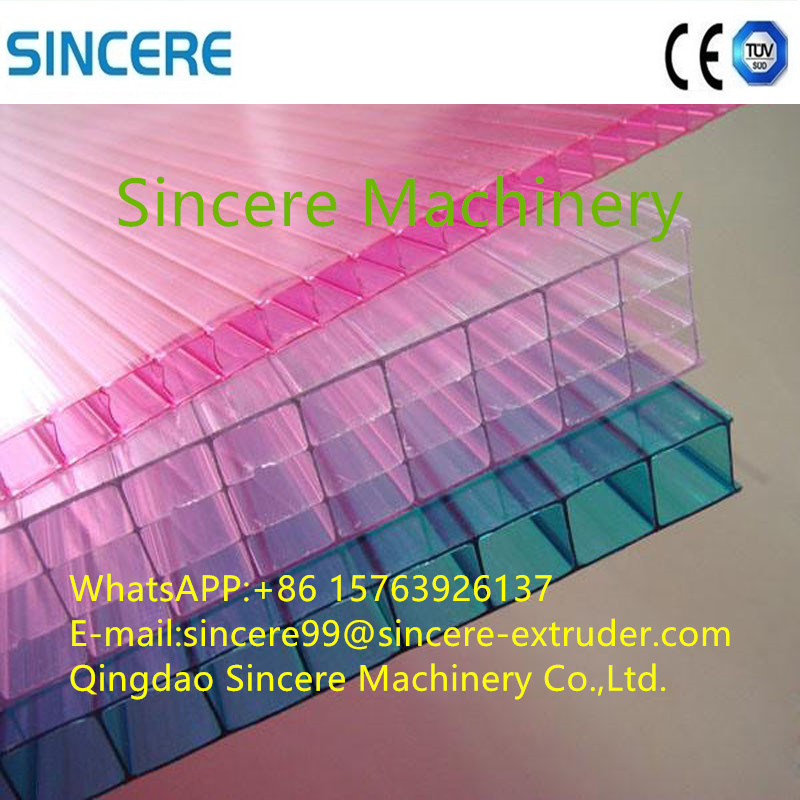

The grid board has the strong point of smooth and clean surface,
good outlook and pressure resistance. It can be widely used in
construction, package and adornment industries.
The machine can produce LDPE hollow grid board as well as
agricultural and construction transparency warm keeping PP, PE, PC
hollow grid board through changing the molding die.
2. The production line using high-speed energy-saving stable screw,
the output compared to similar products increased by 25% or more;
special design calibaration table, the district alone control; a
specific temperature control device to reduce heat shrinkage,
simple operation; traction roller can be customized to increase the
extension; Different requirements of single-sided double-sided
increase UV layer; unique design mold, wall structure and diverse,
wall thickness can be customized.
PC hollow board production line, the host for the 120 extruder, can
be extruded with 45 extruder, 45 main main squeeze 'UV' raw
materials, play the role of outdoor use of UV, the general
production line to make the thickness of the sun plate
4,6,8,10,12,14mm. You can choose single-sided UV (AB) or
double-sided UV (ABA) layer structure.
3. EQUIPMENT LIST:
| 1 | mixer | 1 set |
| 2 | screw loader | 1 set |
| 3 | 12035 single screw extruder | 1 set |
| 4 | Hydraulic Screen Exchange&Melt Pump&Mould | 1 set |
| 5 | Calibration table | 1 set |
| 6 | First Haul off unit | 1 set |
| 7 | Heating oven | 1 set |
| 8 | second haull-off machine | 1 set |
| 9 | Online Crusher | 1 set |
| 10 | PLC control Cross Cutting System | 1 set |
| 11 | Tranmission Table | 1 set |
| 12 | Electric Control system | 1 set |
4. Main technical parameters of PP PE PC sunlight panel extrusion
line:
| SJ120|35, SJ45|30 | SJ10038, SJ4530 | SJ120 | SJ10033 |
| Material | PC | PC | PP PE | PP PE |
| Product width | 2100mm | 1300mm | 2100mm | 1300mm |
| Product Thickness | 2-4mm | 2-10mm | 2-8mm | 1.5-8mm |
| Extruder Motor | 18522kw | 13222kw | 132kw | 110kw |
| output | 450kg/h | 300kg/h | 350kg/h | 200kg/h |
2. PP PS thermoforming sheet extrusion production line, width
range: 500-2000mm, thickness range: 0.2-2.0mm
3. PP PE stationery sheet extrusion|Co-extrusion production line,
width range: 500-1500mm, thickness range: 0.15-2.0mm
4. PVC transparent plate| shhet extrusion production line, width
range: 500-1500mm, thickness range: 0.15-2.0mm
5. PC optical grade sheet extrusion production line, width range:
1000mm or more, the thickness range: 0.15-1.0mm
6. ABS PS refrigeratorwashing machine platesuitcase sheet extrusion
production line, width range: 1000-2000mm, thickness range: 1-6mm
7. PC, PMMA plate extrusion production line, width range:
1200-2100mm, thickness range: 1-6mm
8. PP PVC chemical thick plate extrusion production line, width
range: 1200-2100mm, thickness range: 3-30mm
9. PVC decorative plate extrusion production line, width range:
1200-1500mm, thickness range: 1-3mm
10. PVC foam sheet extrusion production line, width range:
1200-1500mm, thickness range: 2-20mm
11. PC, PE, PP multilayer hollow grid plate extrusion production
line, width range: 1000-2100mm, thickness range: 2-10mm
12. PE aluminum-plastic composite plate extrusion production line,
width range: 1200-1500mm, thickness range: 1-6mm
13. PVC, PE carpet extrusion production line, width range:
1200-3000mm, thickness range: 1-6mm
14. PVC, PE waterproof|geomembarane sheet extrusion production
line, width range: 1200-4000mm, thickness range: 1-6mm
15. Wood-plastic WPC plate extrusion production line, width range:
1200-2000mm, thickness range: 2-10mm
16. Various types of mirror roller, embossing roller and other
roller diameter: φ200-φ1000mm, length: 500-7000mm
17. Various types of extruder, single screw extruder or double
screw extruder, screw diameter: φ30-φ200mm
18.CPP, CPE three co-extruded cast film extrusion production line
19. TPO sheet, board production line
20.PE battery separator plate production line
