    Reinforced Polyethylene PVC Plastic Pipe Manufacturing Machine Corrugated Pipe Extrusion

    Ask Lasest Price
    Brand Name : Sincere
    Model Number : SMSG800, SMSG1600, SMSG2400, SMSG3000, SMSG4000
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 10 sets per month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Reinforced Polyethylene PVC Plastic Pipe Manufacturing Machine Corrugated Pipe Extrusion

    HDPE large diameter hollow wall spiral pipe extrusion line.
    HDPE Structural wall winding pipe extrusion line.
    PP-H Solid Wall Spiral winding corrugated pipe extrusion production lines.


    1.Feature:

    *Double-walled corrugated pipes, with "H" structure.
    *DN200-DN4000mm
    *Ring Stiffness:SN2, SN4,SN8,SN12.5, SN16
    2. HDPE large diameter hollow wall winding pipe machine .
    **The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-3000mm.
    **Our machine is featured with comfortable operation and high performance/price ratio.
    **Due to our special design, it is very convenient in transportation and installment.
    **We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion.
    **By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably.
    **Special design for easy maintenance.
    **The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.

    3.Technical parameter

    ModelSMSG-800SMSG-1200SMSG-1600SMSG-2200/2400SMSG-3000/4000
    ExtrudersSJ65+SJ55SJ90+SJ65SJ100+SJ65SJ120+SJ90SJ150+SJ100
    Output capacity(kg/h)250-300350-400500-600750-8501000-1500
    Pipe diameter(mm)200-800400-1200800-16001200-2200
    800-2400
    2000-3000
    2000-4000
    Production speed(m/h)2-162-121-60.5-50.3-3
    Installed power(kw)180250300400500

    4.Detailed Image

    Plastic Inner Rib Reinforced Polyethylene HDPE Structural Wall Spiral Corrugated Pipe Extrusion Machine

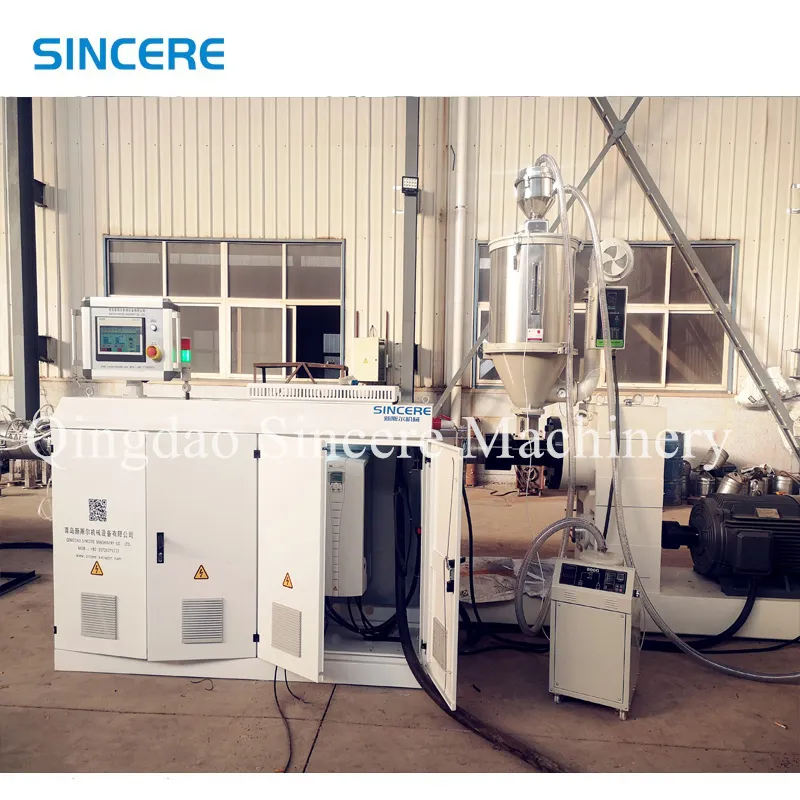

    Single Screw Extruder with Feeder ,Drying hopper and Extruder
    High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality extrusion.
    (1) Motor brand: Siemens
    (2) Inverter brand: Delta
    (3) Contactor brand: Siemens
    (4) Relay brand: Omron
    (5) Material of screw and barrel: 38CrMoAlA.
    (6) Heating method: Ceramic or cast aluminum heating

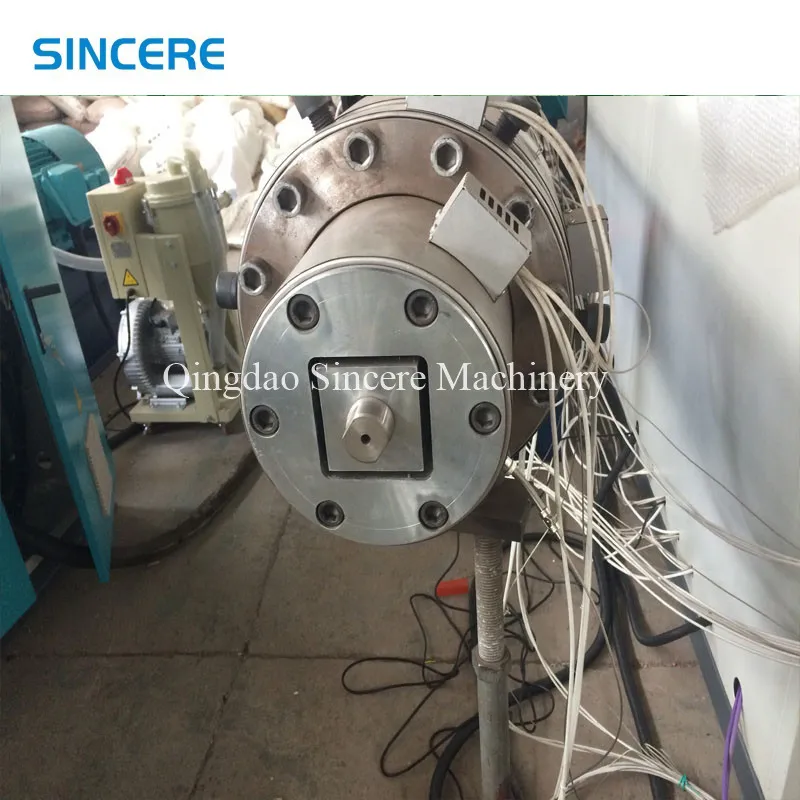

    Profile Extusion Mould

    The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.
    Plastic Inner Rib Reinforced Polyethylene HDPE Structural Wall Spiral Corrugated Pipe Extrusion Machine
    Plastic Inner Rib Reinforced Polyethylene HDPE Structural Wall Spiral Corrugated Pipe Extrusion Machine
    Vacuum Calibration Tank
    Vacuum Pump 2 sets
    Water Pump
    304 Stainless Steel with 4mm thinkness


    Plastic Inner Rib Reinforced Polyethylene HDPE Structural Wall Spiral Corrugated Pipe Extrusion Machine

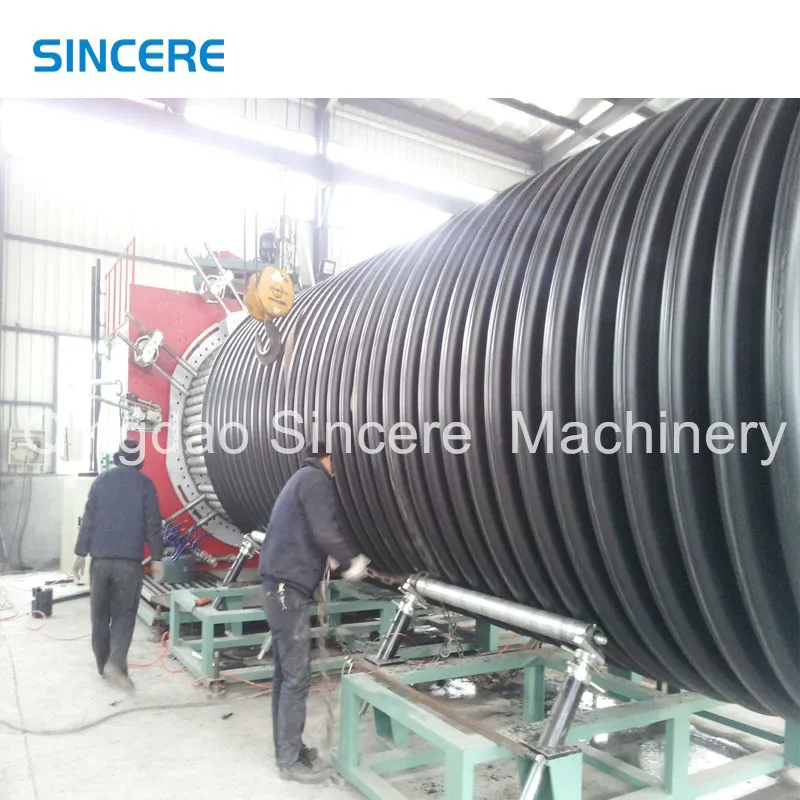

    Spiral Forming Machine

    It is stainless steel materials.
    The spiral winding machine, which ar produced by Qingdao Sicere Plastic mahcinery,efficient and energy-saving, stable operation, easy to install and disassemble

    Pipe Stacker

    Pneumatic control
    With cutting machine
    Plastic Inner Rib Reinforced Polyethylene HDPE Structural Wall Spiral Corrugated Pipe Extrusion Machine

    *What can the machine produce?
    It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.
    5.Final Products Show & Application:
    PP waste gas purification tower,
    PP spray tower,
    waste gas spray tower,
    PP acid mist spray tower,
    PP washing tower
    PPH storage tank
    PPH winding tank
    vertical storage tank
    PPH vertical storage tank
    PPH horizontal storage tank
    PPH storage tank
    PPH vertical storage tank
    PPH winding pipe for chemical industry

    制品-内肋骨 拷贝.jpg
