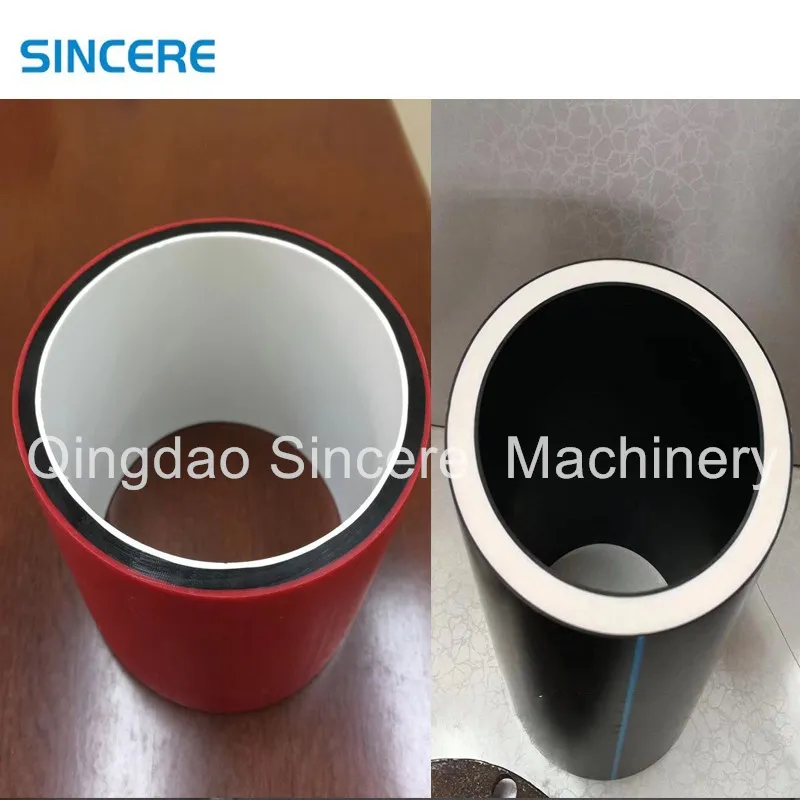

1. MPP Three Lays Electric Pipe features:
1. High precision mold 2. Good performance 3. Reasonable design 4. Long usage life 5. Product characteristics: a) Good quality b) Smooth surface c) Antibacterial d) Wearable e) Antistatic f) Insulate 6. Good production stability 7. Uses imported electric components 8. Widely used for agriculture and industry 9. Large marketing potential 10. Adopts AC frequency conversion technology

2. Production line features:

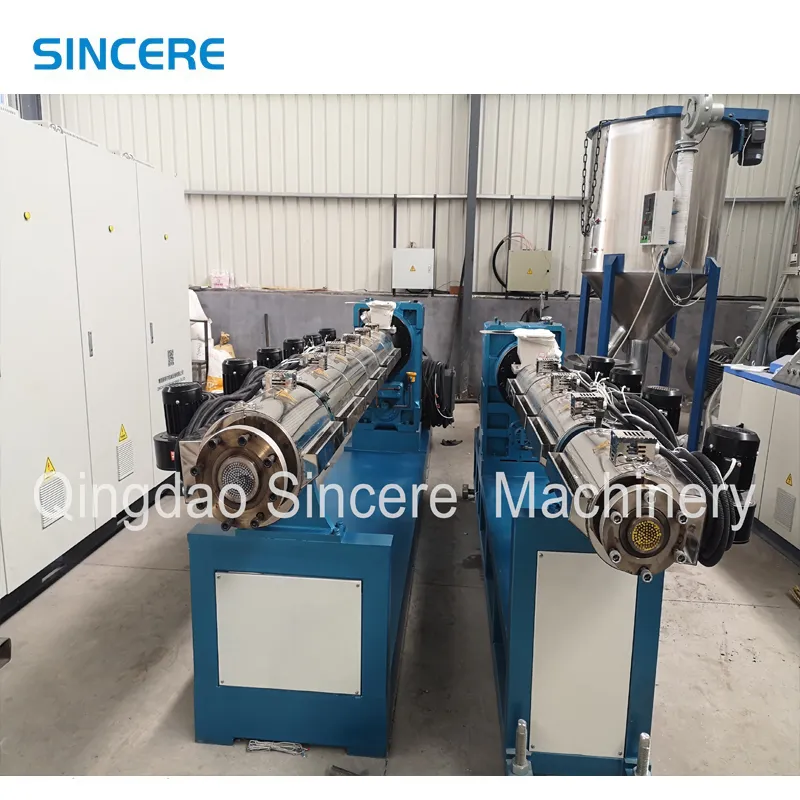

Extruders: Plastic Single-screw extruders for HDPE/PP, optinal SJ45, SJ55, SJ65,SJ75, SJ90,SJ100,SJ120,SJ150, L/D 33:1 or 38:1.
Extrusion capacity from 40kg/h to 1500kg/h.
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.

Extrusion die-head
Single layer extrusion die mould, double layers extrusion die moudld, three-layers extrusion molds.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

Vacuum calibration water tanks, and spray water cooling tank: made of stainless steel ensures precise calibration and fast cooling.

Multi claws haul-off unit
speed adjusted by frequency inverter or by servo-motors. Be able to cut large diameter and thick wall pipe, servo-motors
Haulling speed: 0-30m/min.

Cutting machine

1.No-dust Cutter:The chip-free cutting machine can keep the production environment clean and noiseless. The incision is smooth and neat, which improves the appearance quality of the pipe.
2.Planetary Cutter:Planetary cutting machine with special hard fit blade, suitable for large diameter thick wall pipe cutting

3.Final product

PERT Pipe PE Silicon Core Pipe

HDPE Pipe PPR Pipe
MPP Electrical Pipe
4. Technical parameters:

Qingdao Sincere Machinery Co., Ltd. is located in the beautiful coastal city Qingdao of Shandong Province, Qingdao airport and Qingdao/Jiaozhou railway station provide convenient transportation.

Our company is a plastic machinery research and development, design and manufacturing, production and operation and technical services as one of the high-tech enterprises. The area of construction is 12000M2, we have one office building and three workshops.

We have certification CE, SGS, ISO, EAC and so on.

Our main products are: Plastic extruders, PE/PP spiral winding pipe extrusion lines, profiled structural wall HDPE pipe extrusion line, ribbed/steel reinforced spiral DWC corrugated pipe machine, water tank machine, plastic welding threading engraving machine, HDPE/PPR/PVC/pert composite water pipe extrusion line, HDPE mbbr biomedia extruder machine, plastic HDPE/PP/ABS/pet/PVC sheet/board/panel extruding equipment, plastic PVC/PE/ABS profile/panel equipment, plastic recycling pelletizer granulation line, shredder/crushers and other auxiliary equipments for plastics.

Varieties of new products sold domestic and exported to Russia, Southeast Asia, the Middle East, Africa and many other countries and regions.

HDPE Spiral winding pipe extrusion line.

HDPE Weholite/Culvert pipe extruding machine.

KWH pipe machine. Krah pipe extrusion line.

HDPE sewage pipe extruder machine.

Double wall corrugated HDPE pipe extrusion lines.

Water tank extrusion production line.

DN200-DN4000mm HDPE pipe manufacturing machinery.

Triple layers HDPE water supply pipe machine.

HDPE/PP/PPR/PERT/PVC Water supply and drainage pipe extrusion line.

MBBR Biomedia production extruder machine.

Plasitc scrap granulator pelletizing line

PVC/ABS/PE/PP profile/panel making machine.

HDPE/PP/ABS/PMMAThick sheet/board production line.

PE/PP/PET/PS/PC/PMMA/PLA sheet/panel produciton machine.

Welcome to visit our factory and looking forward to win-win cooperation.
