HDPE Plastic Steel Winding Pipe Extrusion Production Machine
We are going to continue to lead the pursuit of excellence created
a unique and exquisite HDPE Reducing Tee, Large Diameter PVC Pipe, Tee PVC Pipe, working together to build a new world with the community. We
continue to develop new products and improve existing products with
ourrigorous scientific style, superb professional technology, and
lead the market. We look forward to your inquiry. Our company
values the adherence to innovation-driven strategy. As far as the
future is concerned, we are prepared to share resources with the
world, grow together and create a better future. We will serve the
domestic and foreign businessmen with sincere dedication, and let
us create bright future together with you!
Product Introduction
The steel belt reinforced polyethylene (PE) spiral corrugated pipe
is a new type of bellows with high-density polyethylene as the
basic material, the outer layer is spirally wound in the wall
layer, and the steel plate is reinforced with hollow ribs. In
addition to the corrosion resistance, smooth inner wall and low
flow resistance of ordinary plastic pipes, it has a steel ring as a
hollow surrounding structure of the reinforcement, so it also has a
ring degree of more than 12.5KN/m2 (spiral winding). Hollow wall
polyethylene can only reach 8KN/m2 ring steel) and high strength
and toughness, light weight (40% lighter than spiral wound hollow
wall polyethylene pipe), impact resistance, not easy to break, no
leakage, etc. Features, so it is widely used in drainage, sewage,
agricultural irrigation, coal mine ventilation, chemical,
communications cable sheathing and other fields. Because of its
light weight and convenient transportation and installation, it
reduces the labor intensity of construction workers and reduces the
cost of the project. It is an ideal substitute for concrete pipes
and traditional drainage plastic pipes.
Feature of Steel Belt Rinforced PE Spiral Pipe
Outer diameter: Common Diameter 200mm~4000mm
Material: High quality, virgin or recycled PE100/PE80
The ring stiffness reached SN8 to SN16, 300 mm (12 inch) up to 3200
mm (126 inch)
1. HDPE Large diameter spiral pipe (diameter from 200mm-4000mm) has high ring stiffness and high brunt
intensity with "H" structure. It can be used for approximate 50
years and has many advantages such as low cost assembly and easy
operation, with standing pressure, corrosion resistant such as
acid, alkali and salt etc. It is becoming as a replacement of
cement pipe and cast iron pipe nowadays. It is being widely used as
sewage and drainage pipe.
2. HDPE large diameter hollow wall winding pipe machine .
**The HDPE large diameter hollow wall winding pipe extrusion line is
designed with advantaged technology and improved based on long time
practice experience. Diameter range can be 200-3000mm.
**Our machine is featured with comfortable operation and high
performance/price ratio.
**Due to our special design, it is very convenient in transportation
and installment.
**We also developed energy saving method to save energy consumption
in large diameter hollow wall winding pipe extrusion.
**By adopting two sets of high efficient extruders, the output
capacity is big. Our winding pipe extrusion line can make pipe with
ring stiffness 4, 8, 12KN/m2. All parts precisely designed and
manufactured so the whole extrusion line works stably and reliably.
**Special design for easy maintenance.
**The HDPE large diameter hollow wall winding pipe extrusion line is
mainly used for producing large diameter hollow wall winding pipe.
3.Technical parameters
| Model | SMSG-800 | SMSG-1200 | SMSG-1600 | SMSG-2200/2400 | SMSG-3000/4000 |
| Extruders | SJ65+SJ55 | SJ90+SJ65 | SJ100+SJ65 | SJ120+SJ90 | SJ150+SJ100 |
| Output capacity(kg/h) | 250-300 | 350-400 | 500-600 | 750-850 | 1000-1500 |
| Pipe diameter(mm) | 200-800 | 400-1200 | 800-1600 | 1200-2200
800-2400 | 2000-3000
2000-4000 |
| Production speed(m/h) | 2-16 | 2-12 | 1-6 | 0.5-5 | 0.3-3 |
| Installed power(kw) | 180 | 250 | 300 | 400 | 500 |
4.Plastic Pipe Production Machine Pictures

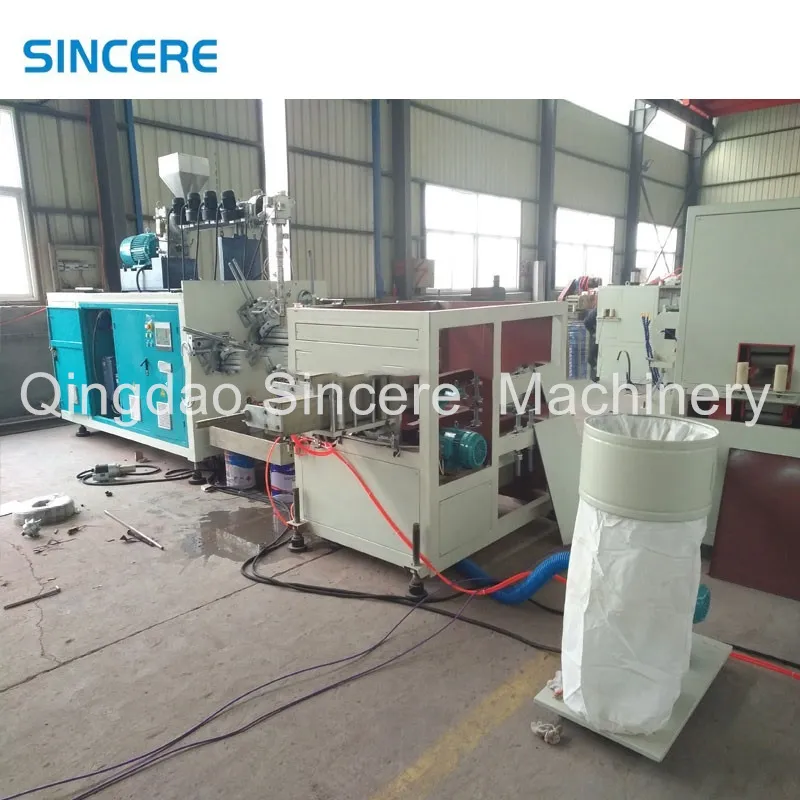

HDPE Plastic steel pipe making machine Feeder ,Drying hopper and
Extruder
High production capacity of extrusion on the high quality basis.
Lower temperature plasticizing design, ensure high quality
extrusion.
(1) Motor brand: Siemens
(2) Inverter brand: Delta
(3) Contactor brand: Siemens
(4) Relay brand: Omron
(5) Material of screw and barrel: 38CrMoAlA.
(6) Heating method: Ceramic or cast aluminum heating
HDPE Plastic Steel Coiled Pipe Extusion Die head
The mould is made of high-quality alloy steel, the internal flow
channel is chrome-plated and highly polished, which is
wear-resistant and corrosion-resistant; With the special sizing
sleeve, the product production speed is hight and the surface of
the pipe is good.Vacuum calibration water tank and Water cooling tank
It is stainless steel materials.
It could be water leaching cooling way or water spray cooling way
according pipe diameters and extrusion speed.
(1) Vacuum pump power : 4 kw
(2) Water pump power: 2.2 kw*2
(3) Spray cooling: ABS nozzle; Stainless steel pipe
(4) Stainless steel material: 1Cr18NiTi
(5) Diameter of tank : Customized
(6) Length of tank: 6 m
HDPE Plastic Steel Pipe Haul-off machine
The main function of the tractor is to clamp the pipe after cooling
and forming, and transport the pipe forward smoothly and evenly by

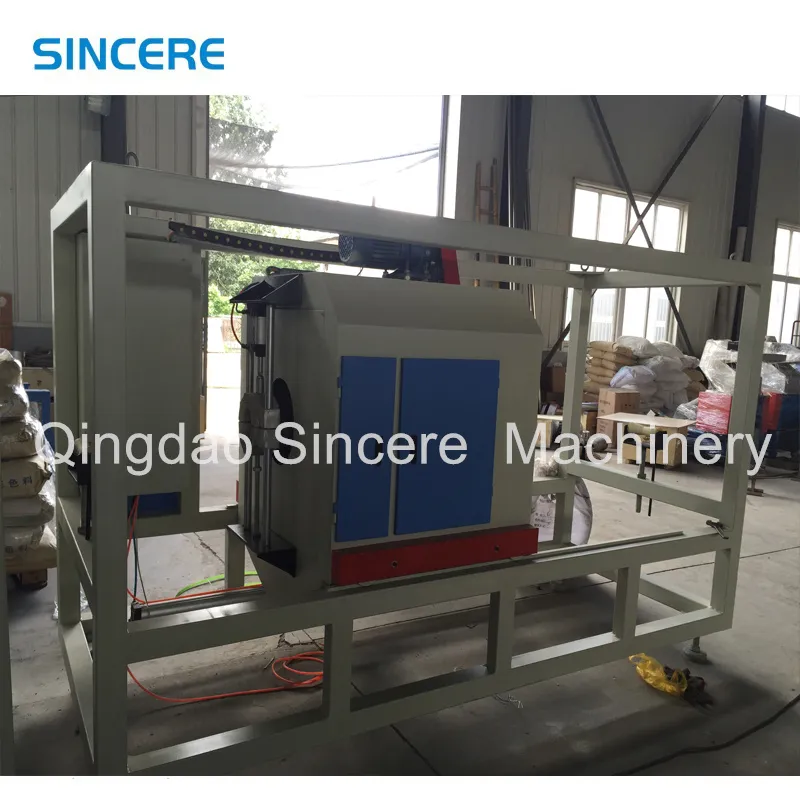

providing a certain traction speed and traction force.HDPE Plastic Steel pipe cutting machineThe special cutting machine for PVC pipe adopts rotary clamping
device, is suitable for different pipe diameters, avoids the
trouble of frequently changing clamping device.(1) Cutting motor power: 1.5 kw
(2) Cutting scope: Customized
(3) Control means: Pneumatic control
HDPE Plstic Steel Pipe Glue welding extruder
It has the function of easy operation and maintenance
5.Recommend Spiral Pipe Machine:
HDPE Hollow-wall corrugated plastic pipe manufacturing machinery.
Solid wall spiral winding pipe extrusion line.
6.HDPE spiral winding sewer/plastic steel pipes Application:
- Sewage and drainage pipes
- Storm water drainage pipes
- Rain water sewage plastic pipes
- Cable protection pipes
- Civil construction sewage pipes
-Chemical storage tank
- Liquid storage tank
- Manhole wellbore
It can be used for approximate 50 years and has many advantages
such as low cost assembly and easy operation, with standing
pressure, corrosion resistant such as acid, alkali and salt etc. It
is becoming as a replacement of cement pipe and cast iron pipe
nowadays. It is being widely used as sewage and drainage pipe.
